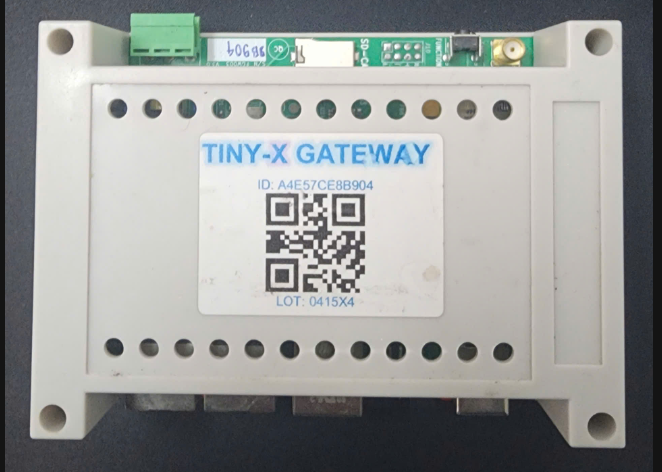

Project 10: Tiny-X Gateway

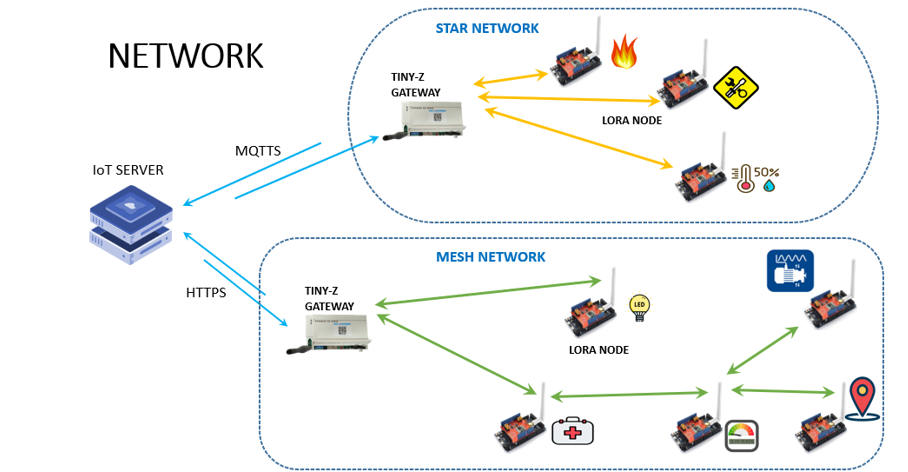

Tiny-X is a simple yet versatile gateway that offers a wide range of connectivity options, making it ideal for small network models with quick integration and customization capabilities.

With built-in connectivity options such as dual LoRa channels, RS485, Wi-Fi, Ethernet, and 4G, users can easily configure and test desired features while minimizing unnecessary hardware development time.

Tiny-X also supports expansion interfaces such as I2C - Extend IO and I2C - LCD and can function as an IoT Node for rapid development. It allows for easy programming and debugging via the built-in USB port and supports multiple development platforms, including Arduino.

Key Features

• Built-in dual LoRa channels, RS485, Wi-Fi, Ethernet, and 4G
• Supports I2C - Extend IO and I2C - LCD
• Works as an IoT Node for rapid prototyping
• USB programming and debugging support
• Compatible with Arduino development platform

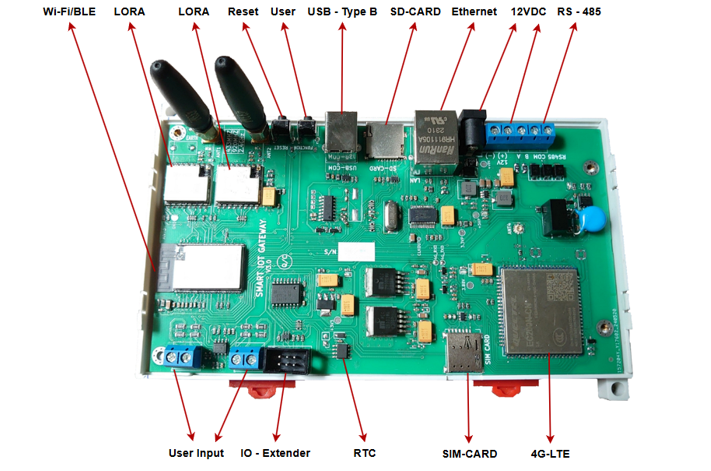

Project Details

• Microcontroller: ESP32 Dual Core 240MHz with 16M Flash + 4M RAM
• Memory: SD-Card / On-board Flash
• Debugging: USB Type B COM port (1Mbps)
• LoRa: RA-01H (920MHz) / RA-01L (433MHz)
• 4G-LTE
• Expansion Connectors: I2C-Display, I2C-IO Extender
• Ethernet: 10/100, RJ45
• High Accuracy RTC: ±5ppm DS3231M with 3V backup battery
• RS485: Isolated 1Mbps
• Input Supply Voltage: 12V 1A

Gallery
